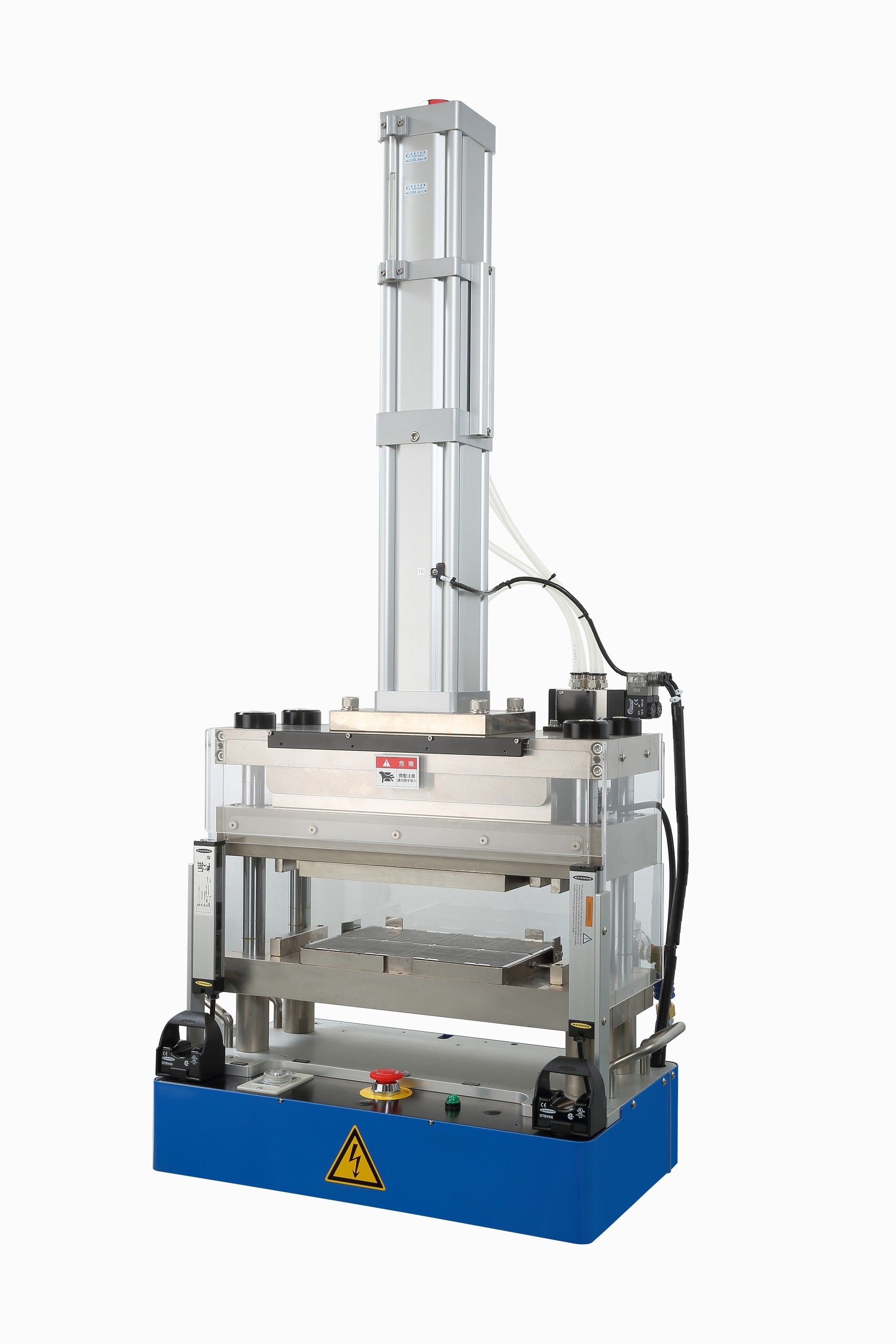

Air Press for Level

LGAT-023T
Air Press for Level
Product Description
Application： Chips inserting into TCP and then leveling or transferring.
Q'ty : Inquiry
  • Put the TCP after inserting chips on lower Leveling Plate by labor.
  • Start the bilateral sensor switch to let the Leveling Press down to make the chips’ protrusion height consistency.
  • Dimension: 650 (L) * 450 (W) * 1350 (H) mm
  • Weight: 150 KG
  • Voltage: 3ψ220VA
  • Electric current: 1(A)
  • Power consumption: 0.22KW
  • Frequency: 50/60Hz
  • Air Consumption: 27 (l/min)
  • Upper Level Plate * 1 pc
  • Lower Level Plate * 1 pc
  • TCP (with inserted chips) * 1 pc
